Bridget PE Manual

Overview

The SGF Bridget PE is an updated version of our SGF Bridget 「TYPE F」 controller.  Bridget PE incorporates updated case designs from our FAUST controller, added USB Passthru port, and extension/accessibility port, without sacrificing the core functionality and affordability of the fan-favorite BRIDGET MX and 「TYPE F」.

The original SGF Bridget is based on the Flatbox rev 4 by jfedor2 (https://github.com/jfedor2/flatbox).

SGF Bridget PE runs the GP2040-CE firmware (https://gp2040-ce.info/) and is compatible with PS4, PS3, Switch, PC (Xinput or DirectInput) and Steam Deck. It comes pre-configured with all necessary firmware and SOCD cleaning.

Firmware updating is not recommended unless you need a new GP2040-CE feature. We never ship with firmware with any known issues, and updating firmware can introduce instability if done improperly or impact previous feature sets.

For questions about software configuration, firmware updates, and software support, please refer to the GP2040-CE documentation at https://gp2040-ce.info/#/usage



Layout

Changing Input Method (PC/Switch/PS3/PS4/PS5)

Using the layout as noted above, hold the following buttons while plugging in the controller to change the input method. Note: this is saved across plug/unplug cycles.

Cross (X) - Switch

Circle - Xinput/PC

Square - DirectInput/PS3

Triangle - PS4/PS5* See details about PS4/PS5 compatibility

R2 - Keyboard emulation

Usage with PS4/PS5

When using with PS4/PS5, the proper input mode must be selected when plugging in (see above). After selecting proper input mode, the PS/HOME button must be pressed to choose the user profile before the controller can be used.

Without the use of a proper authentication device in the USB passthru port (see details below), the controller will time out on PS4/PS5 after approximately 8 minutes of use.

PS5 mode only works with games that support PS4 arcade sticks. This includes all popular fighting games and many others, but not every PS5 game. It does work with every PS4 game when played on PS5.

For the most up-to-date resource on compatible passthru authentication devices, see the GP2040-CE documentation. In general, the following devices can be used for each platform:

 PS4

Any licensed PS4 controller/arcade stick

Mayflash Magicboots PS4

Mayflash Magic-S Pro 2

Brook Wingman XE2

Any of the devices listed for PS5 below

PS5

Any licensed PS4 arcade stick only (standard controllers will not work, nor will PS5 licensed devices)

Mayflash Magicboots PS4 v1.1 ONLY

Mayflash Magic-S Ultimate with beta firmware ONLY

Brook Wingman FGC

PS5 licensed devices will not work



3.5mm External Input Port

The 3.5mm port can be used to connect external inputs to the L3 and R3 signals on the controller. Any digital switch can be used. Analog signals are not supported.

To send the button press signal, the switch should connect either the "left" or "right" (depending on whether the switch is L3 or R3) signal to the GROUND signal on the 3.5mm cable. No diodes or resistors are required. Adapters/converters for things like 3.5mm>RCA, 3.5mm>1/4in should work, but we're unable to test all of them.

Please note that tournament rules change often -- you are responsible for ensuring that use of external switches is allowed under your particular tournament rules. Many tournaments will require the use of the lockout switch to remain in compliance.

Lockout Switch

The small switch on the top of the controller near the USB-C port can be used for Tournament Lockout Mode. This mode physically disconnects the 6 option buttons (START, SELECT, HOME, TOUCHPAD, L3, R3) from the controller. This can prevent accidental presses in tournament play, and may allow for those buttons to be remapped to external inputs depending on tournament regulations.

Changing Directional Behavior

Using the layout above, hold the following buttons at any time to change the directional input behavior. Note: this is saved across plug/unplug cycles.
BACK+START+LEFT - Left Analog Stick Emulation
BACK+START+RIGHT - Right Analog Stick Emulation
BACK+START+DOWN - Digital Dpad

Changing SOCD Modes

As of April 2023, the Bridget ships with Neutral SOCD as the default setting (U+D=none). Other settings can be chosen in the web config or with the following key combinations. Note: this is saved across plug/unplug cycles.

START+GUIDE+UP - Up Priority (U+D = U)
START+GUIDE+DOWN - Neutral (U+D = none, default)
START+GUIDE+LEFT - Last Input Priority (most recently pressed input is active)

Shell Disassembly

Unplug the device before opening your Bridget PE.

To open the back of the Bridget PE, use fingernails, a credit card, or any other rigid plastic object as a shim. Insert and push against either tab, alternating between each tab. Release each latch. We don’t recommend using metal tools as they may apply too much force to the tabs.

Slide the two panels out of either side of the shell.

Turn the shell face-down, and press on the large UP button from the underside to lift the PCB off of the mounting posts. From there you can lift and remove the PCB with all buttons & switches attached.

To reassemble the shell, carefully place the PCB into the shell top-first, to position the lockout switch and USB port in their respective holes. Lower the PCB on to the mounting posts. You may have to gently press against the mounting posts to push them through the corresponding mount holes on the PCB.

Slide each panel back into the track on the back of the shell. If they don't slide smoothly, be sure all parts are aligned correctly. Slide both panels together until both latches catch against the other panel.

After reinstalling, press down on the tabs to ensure they're fully seated.





Removing Switches

Without Removing Shell

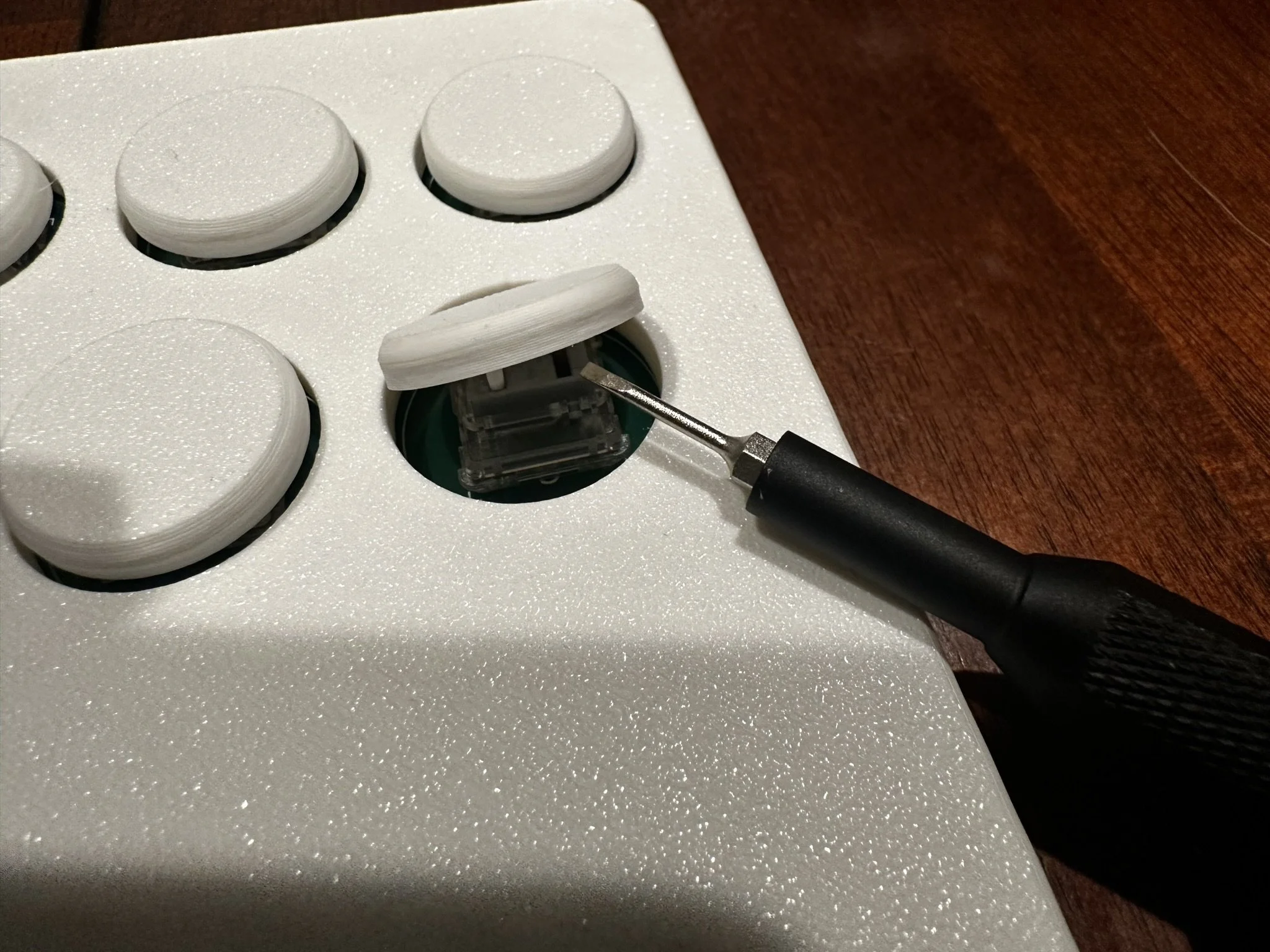

Insert a small flat screwdriver or similar tool under the button cap and pry it off. It may break off – this is okay, as replacement switches from us should include replacement button caps.

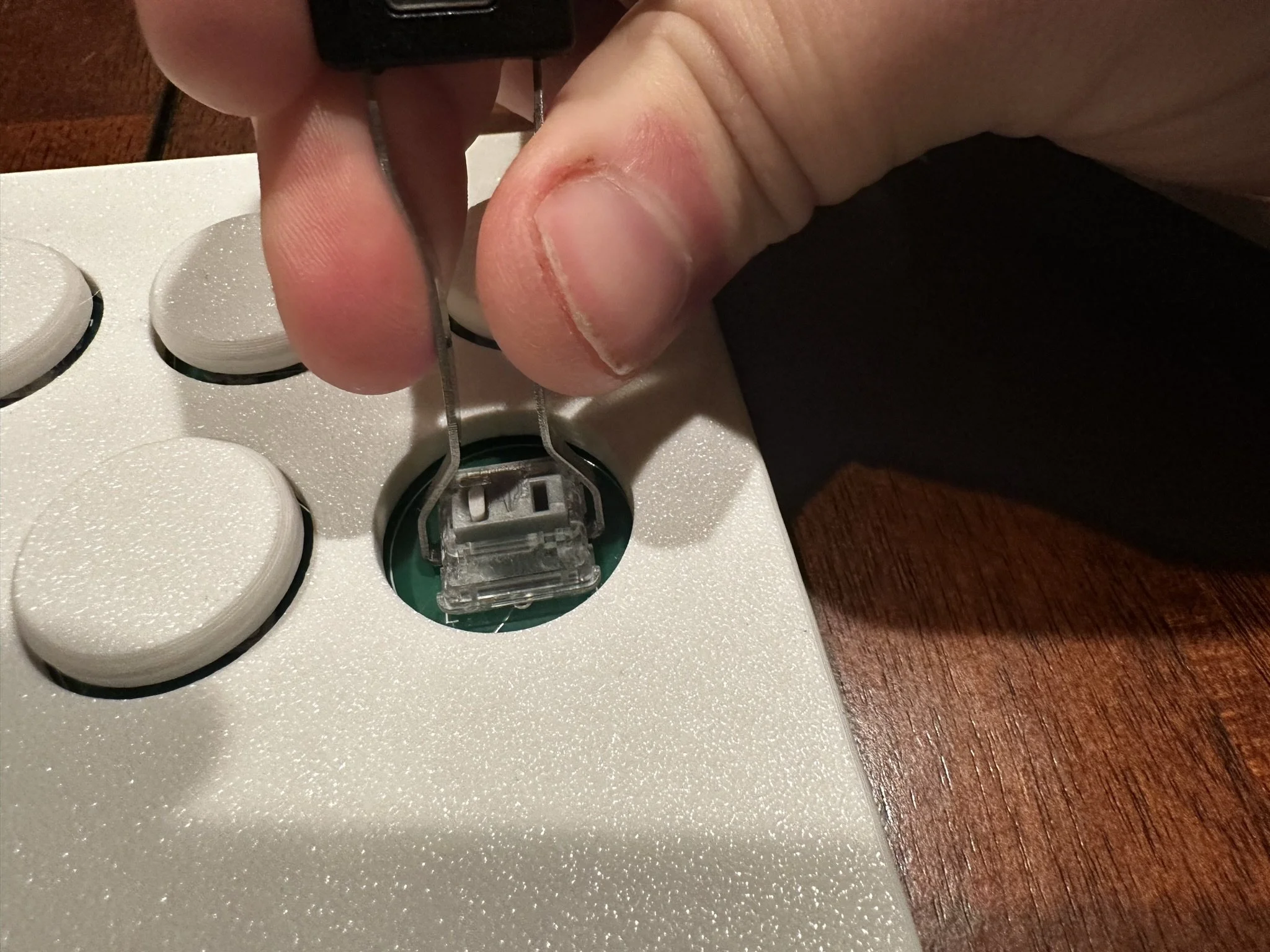

Remove the switch using a switch puller or a pair of pliers. Be careful not to damage the underlying PCB.

After Removing Shell

This method will not damage the button cap, and therefore can be more useful for cleaning or other scenarios where the button cap must be saved.

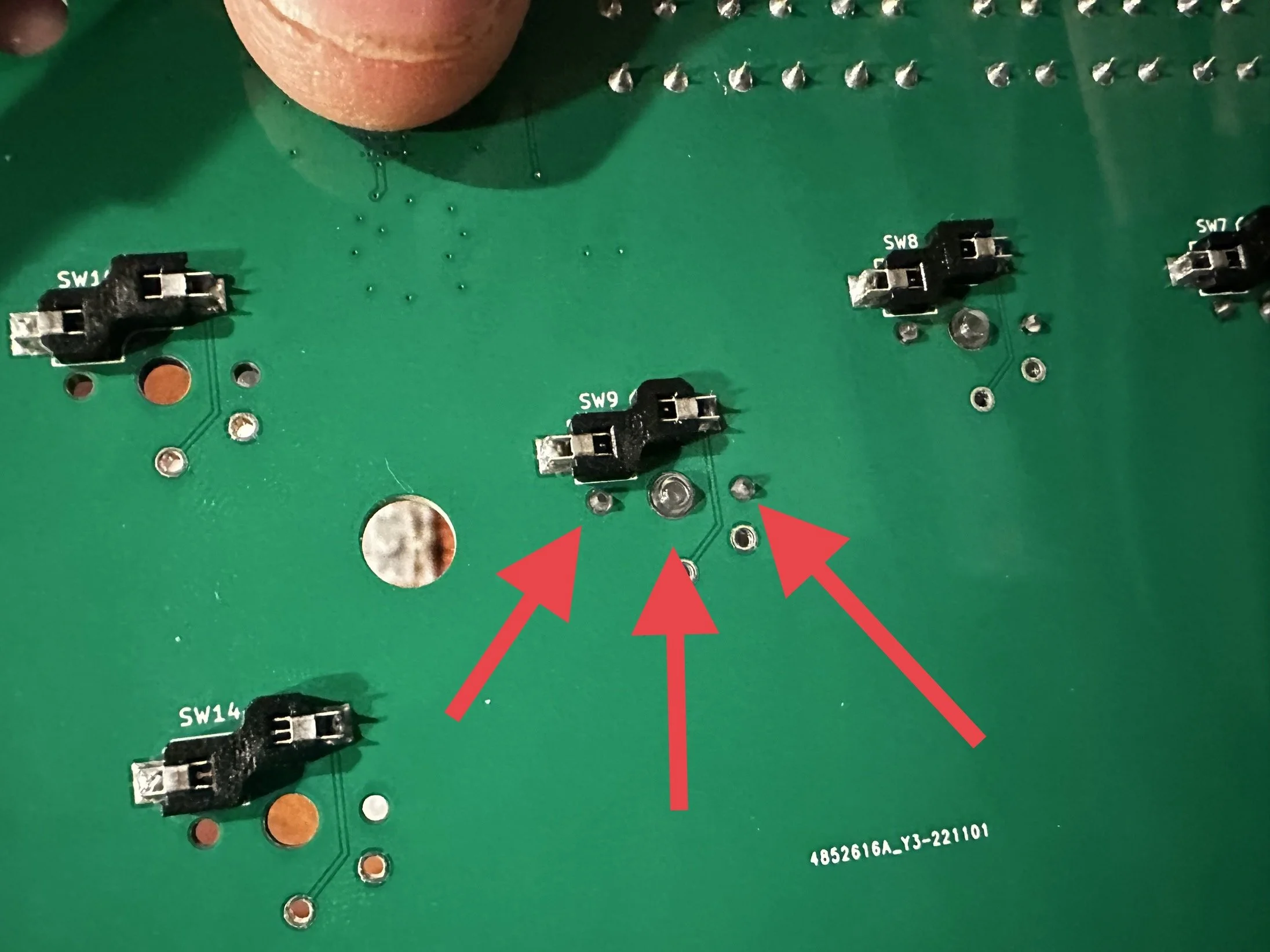

After removing the PCB from the shell, using a small blunt tool, push the 3 small retention buttons from the back of the PCB out towards the front. (These may be a different color than pictured). Newer revisions only have 1 retention button in the center.

This will loosen the button enough that it can be pulled away from the front side by hand.

After removing the switch from the board, the button cap can be separated from the switch by gently pulling them apart with your fingers.

Installing Switches

This may be done with or without the shell on. Your replacement switches may or may not have button caps pre-installed. If they are not pre-installed, you may insert them into the switch before or after placing the switch on the PCB.

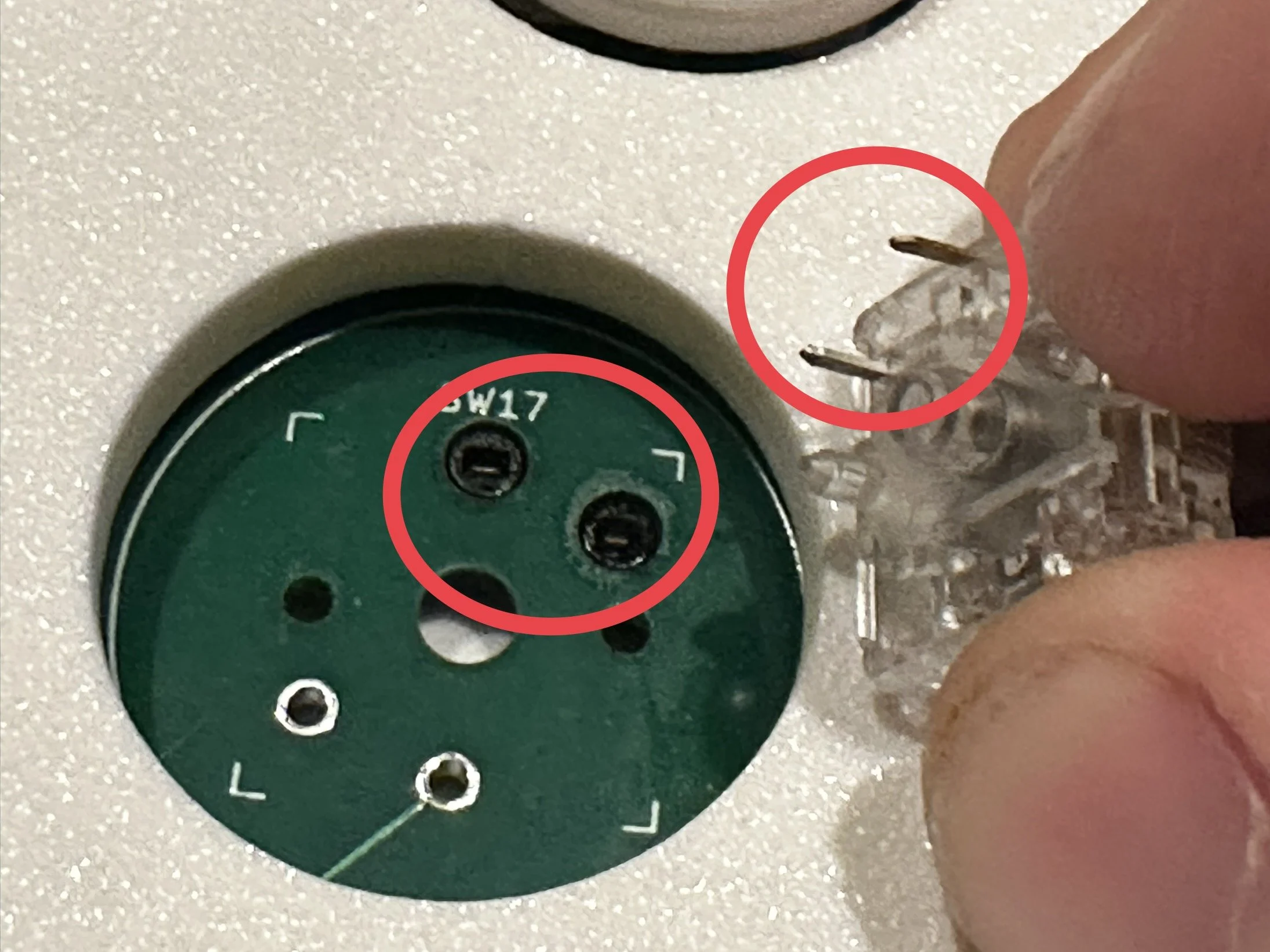

Ensure the two metal pins on the switch are aligned with the two black slots in the PCB, then press the switch onto the PCB firmly.

Note: Your PCB may look different. The black sockets are not always in the same spot.

If the button cap is not already installed, align the legs of the button cap in with the holes in the switch and press it in firmly. Newer switches use a cross-shaped alignment. In either case, just ensure the switch is aligned with the button cap. Tip: If you’re particularly firm while playing or the button feels a bit loose, you can add a very tiny drop of hot glue to the button legs for extra stability.

Configuration

The web configurator can be accessed by holding the START button while plugging in the controller to a PC, then navigating to http://192.168.7.1/ in a browser on the computer. Full reference for configuration options can be found at https://gp2040-ce.info/#/web-configurator. Note that changing values in the configurator may cause functionality issues. It is recommended to only adjust SOCD settings.
