SGF Devices
SGF MonKey B.U.T.T. ULTRA
SGF MonKey B.U.T.T. ULTRA
Low stock
Couldn't load pickup availability
Note: Sold individually. Not recommended for use with NACON Daija.
Many moons ago, apes made a good button. They sat back and admired their work, but then decided we can make a better one. Many more moons passed while they conducted research. Sparing no expense, they accomplished the impossible: the smoothest, most stable microswitch-based button ever made by any mammal.

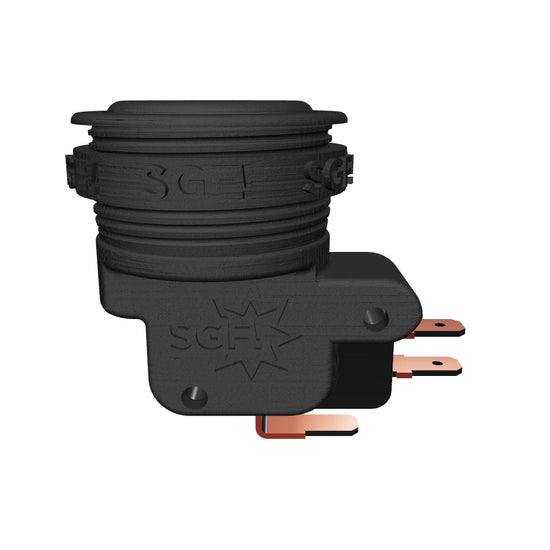

SGF MonKey B.U.T.T.s (Button, Universal, Top Tier) ULTRA are the next evolution of our award-winning* MonKey B.U.T.T.s. Each ULTRA includes a body, magnetic switch mount, plunger, retention ring, and cap that are laser-sintered from durable PA-12 nylon -- the same material used to make power tools -- as well as a noise dampening o-ring, silky smooth integrated synthetic fluouropolymer bearing, and your choice of industrial microswitch (or buy switchless if you prefer your own).
The MonKey B.U.T.T. ULTRA is available in two sizes:
- 30mm - a drop-in replacement for Sanwa OBSF-30 sized buttons
- 24mm - a drop-in replacement for Sanwa OBSF-24 sized buttons
Switches are available in 3 options. All switches use 4.8mm (0.187") connectors -- ensure your harness is compatible before ordering.
- ZF/Cherry D44X - A solid option often used with similar arcade with buttons. 75gf provides reliably intentional actuation with a notable tactile bump and a satisfying-but-not-too-loud click.
- Omron D3V - A middle-of-the-road option at 50gf, the D3V also has intentional actuation with a slightly lighter tactile bump and slightly quieter click.
-
Honeywell V7 - S-tier for lightness and quietness, the V7 is rated at 15gf!!!
- Be careful wielding this insane power, as the plunger mass reduces all actuation forces, meaning this particular switch can be actuated with roughly 6 grams of force when installed. If you are a masher (like we are), you run a significant risk of ghost inputs. For the most gentle fighters only.
Caps/plungers are available in three distinct surface styles:
- Flat, like the 🦧 original Flatbox style buttons
- Convex, similar to Japanese 🇯🇵 Arcade buttons
- Concave, similar to American 🇺🇸 Arcade buttons
Flex your custom controller with a sharp set of Dressed Up ULTRA B.U.T.T.s in any solid color (or a full art print on your cap). Or show off a set of Nekkid ULTRAs - all-natural, raw laser-sintered plastic goodness.
Product Details
- Crafted with Nylon, Lasers, and Monkey Love in the USA 🇺🇲
- Lowest possible height profile with industrial switches
- Dimensions for compatibility:
- Maximum top panel thickness: 10mm
- Minimum interior depth: 45mm
- Depending on switch used, depths as shallow as 40mm may be possible, but not recommended.
- Warning: contains strong magnets. May demagnetize credit cards in close proximity. May cause unexpected behavior when used in close proximity with hall effect sensors. Do not use near pacemakers or other health devices that may be sensitive to magnetic fields.
- Switch mount compatible with many industrial microswitches
- Check datasheets for any switches you might want to use before ordering -- SGF is not responsible for incompatibilities.
- Three surface styles inspired by classic arcade controls:
- Convex buttons with a rounded top, similar to Japanese candy cab & sit-down cabinet buttons
- Flat surfaced buttons, for a distinctively 3D printed DIY feel
- Concave, “scooped” buttons with an inward curvature, similar to American style arcade cabinet buttons
-
Available in two sizes, to align with common arcade button sizes
-
30mm - a drop-in replacement for Sanwa OBSF-30 sized buttons
24mm - a drop-in replacement for Sanwa OBSF-24 sized buttons
-
30mm - a drop-in replacement for Sanwa OBSF-30 sized buttons
- Available with 3 different switch styles for your perfect setup, or without any switch if you've already got some.
- Comes “Dressed Up” in a full range of solid colors, or “Nekkid” without any surface coloration.
No refunds. Exchanges are accepted for damage/failures.
*Awards won by SGF MonKey B.U.T.T.s: "Best Button My Son Made in 2024" from Matt's mom.
